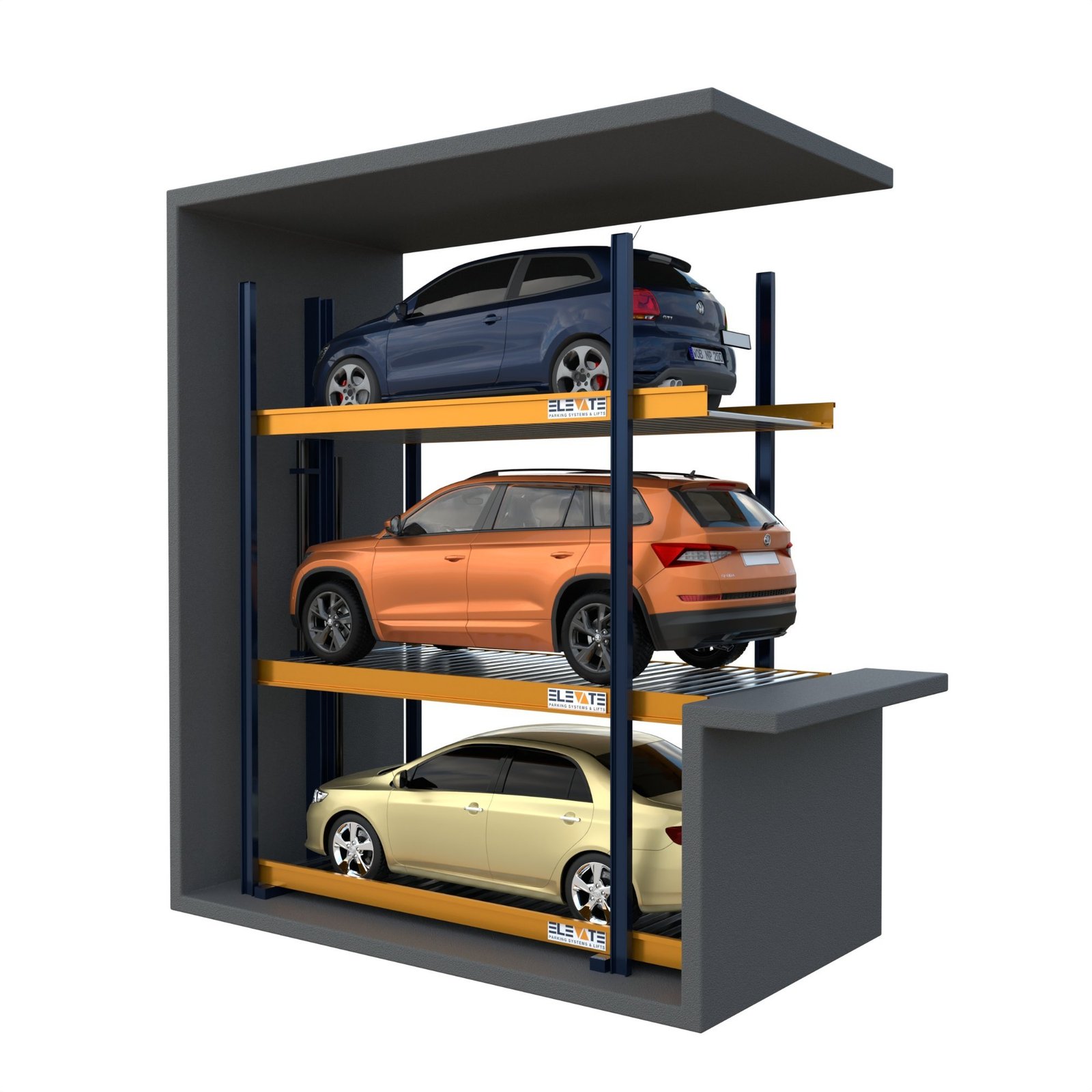

Pit Parking System

Unlock hidden parking potential with our underground Pit Parking System. This innovative solution offers independent access to both vehicles, with dual hydraulic cylinders smoothly lowering and lifting platforms beneath the ground, keeping your outdoor spaces pristine.

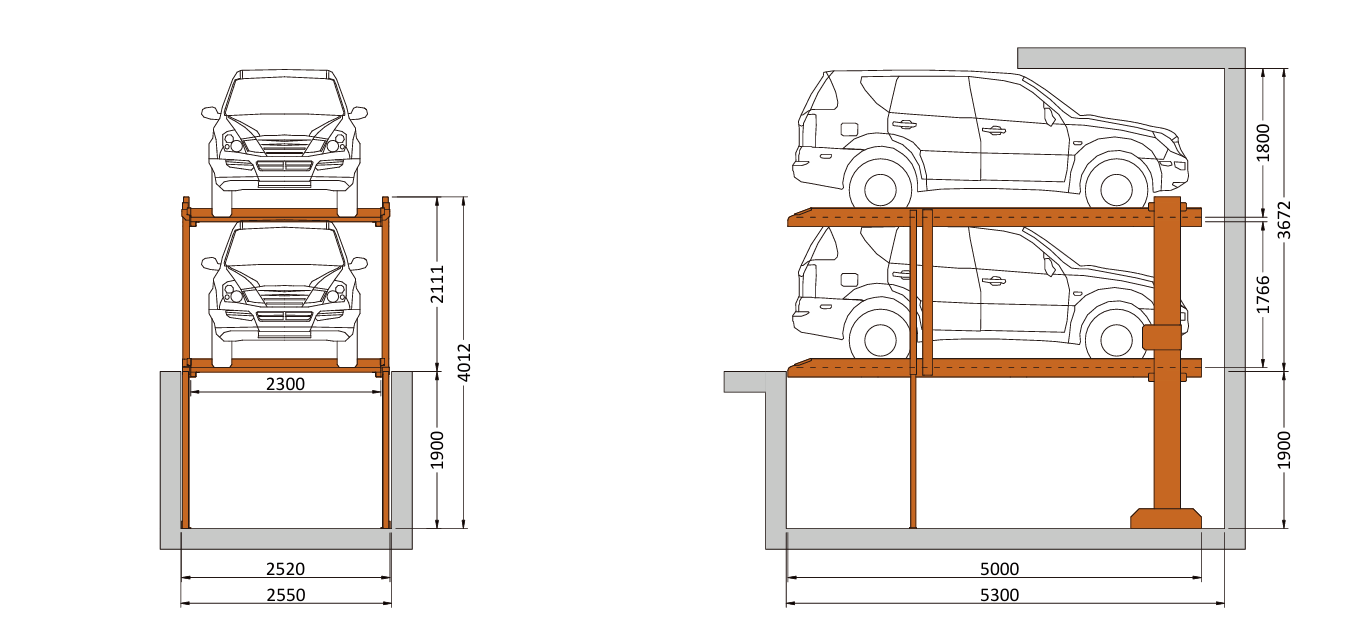

Specifications

Platform Width

2,300–2,500mm 

Pit Depth

~1,900mm 

Load Capacity

2,700kg per platform

Highlights

Fully independent access—no shuffling required

Heavy-duty lifts for SUVs and larger vehicles

Galvanized platform plates and CE-certified design

Multi-position safety locks and an optional centralized hydraulic power pack

Gallery
